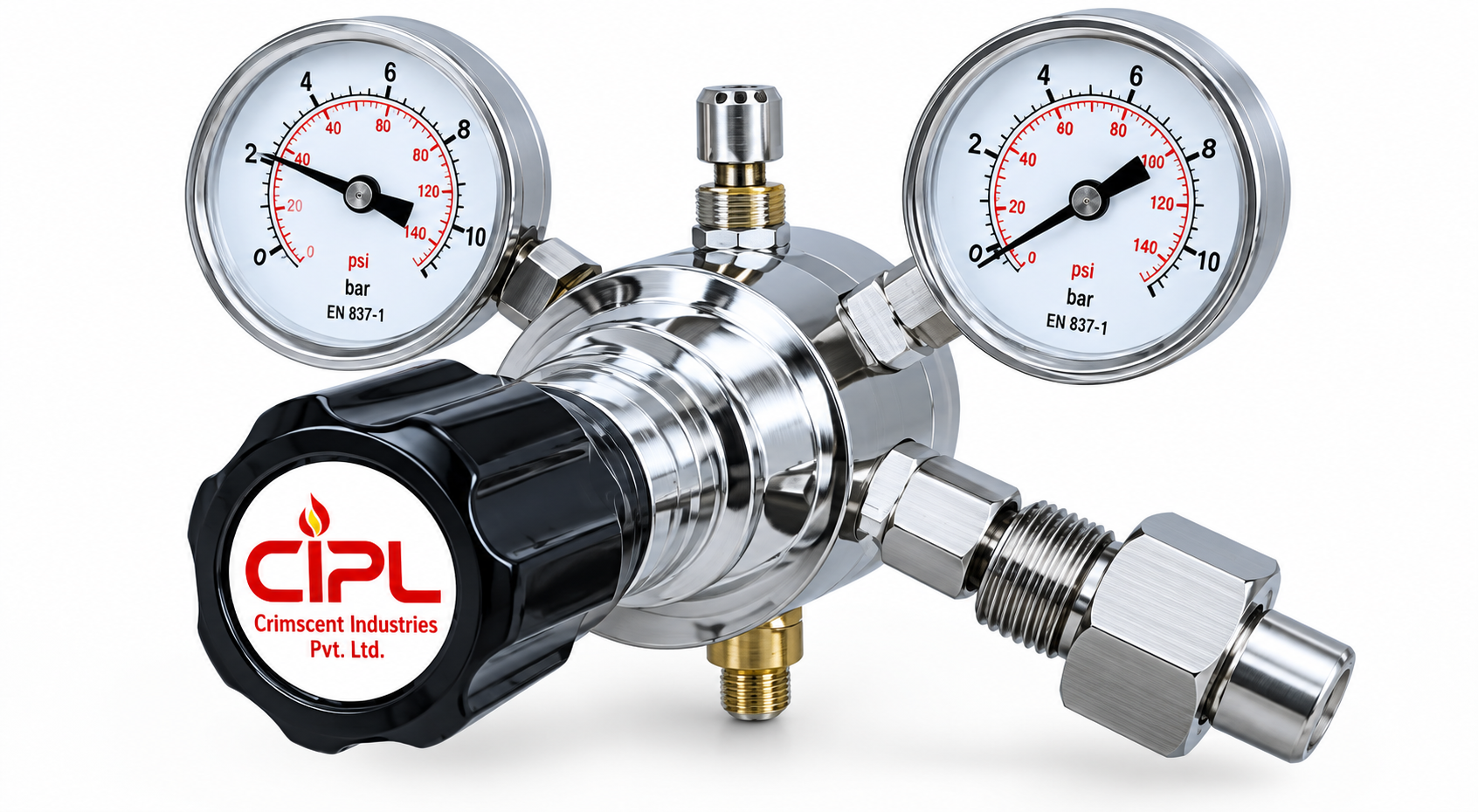

The Crimscent SS Two Stage Pressure Regulator is a high-performance stainless steel regulator designed for precise pressure reduction from high-pressure gas cylinders to a stable and constant outlet pressure. Its dual-stage design minimizes the effects of cylinder pressure decay, ensuring accurate gas delivery throughout the cylinder's service life.
Manufactured from high-quality SS316/SS316L stainless steel, this regulator is suitable for high-purity, corrosive, toxic, and specialty gases. It is widely used in calibration gas systems, laboratories, gas chromatography, analytical instruments, semiconductor applications, research facilities, petrochemical plants, and industrial process control where pressure stability is critical. Two-stage regulators provide significantly better pressure control than single-stage regulators by maintaining a nearly constant outlet pressure even as the cylinder pressure decreases.
Technical Specifications
| Product Type | SS Two Stage Pressure Regulator |
|---|---|
| Body Material | SS316 / SS316L Stainless Steel |
| Bonnet Material | SS316 Stainless Steel |
| Diaphragm | SS316 Stainless Steel / Hastelloy (Optional) |
| Valve Seat | PTFE / PCTFE |
| Filter Element | SS316L Sintered Filter |
| Maximum Inlet Pressure | Up to 300 Bar (Optional 350 Bar) |
| Outlet Pressure | 0–2, 0–4, 0–10, 0–20 & 0–50 Bar |
| Pressure Gauges | Dual Gauges (Inlet & Outlet) |
| Inlet Connection | CGA / DIN / BS / IS Standard |
| Outlet Connection | 1/4" NPT(F), Tube Fitting or Custom |
| Flow Coefficient | 0.05 – 0.06 Cv |
| Leak Integrity | Helium Leak Tested |
| Operating Temperature | -20°C to +74°C |
| Cleaning | Oxygen Cleaned (Optional) |
| Weight | Approx. 2.0 kg |
| Mounting | Panel / Wall Mount (Optional) |
Key Features
Applications
Crimscent manufactures premium-quality SS Two Stage Pressure Regulators for safe, accurate, and reliable pressure control in demanding gas applications. Regulators are available for inert, flammable, oxidizing, toxic, corrosive, and specialty gases with customized inlet connections and outlet pressure ranges to suit specific customer requirements.

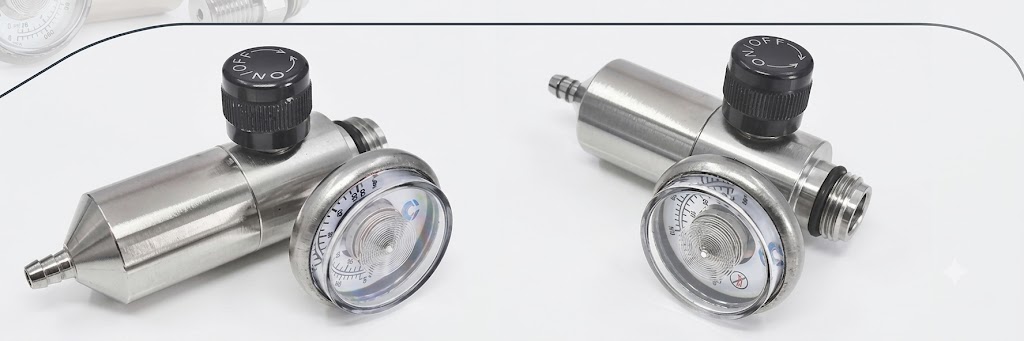

The Crimscent Fixed Flow Regulator (C10 Type) is a compact, single-stage pressure regulator specifically designed to deliver a constant preset flow rate directly from disposable calibration gas cylinders. It provides accurate, repeatable gas flow without the need for manual adjustment, making calibration simple, reliable, and user-friendly.
Manufactured using premium-quality materials, the regulator is ideal for portable gas detector calibration, bump testing, environmental monitoring instruments, and gas analyzers. It is compatible with 17L and 34L disposable calibration gas cylinders fitted with a C10 valve connection and is available in various preset flow rates to meet specific application requirements.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Fixed Flow Regulator (Single Stage) |
| Model | CFR-902 |
| Regulator Type | Single Stage, Fixed Flow |
| Body Material | Stainless Steel |
| Cap Material | Nickel Plated Brass |
| Piston Material | Brass |
| Seat & Seals | PTFE (Teflon), Viton |
| Maximum Inlet Pressure | 83 Bar (1200 PSIG) |
| Outlet Pressure | 4.1 Bar (60 PSIG) |
| Flow Rate | Fixed from 0.1 to 8.0 LPM (as per customer requirement) |
| Inlet Connection | 5/8"-18 UN C10 |
| Outlet Connection | 3/16" Barb (4.8 mm) |
| Pressure Gauge | Brass, 0–103 Bar (0–1500 PSIG) |
| Suitable Gas Types | Non-Reactive Gases (Reactive Gas Version Available) |
| Weight | Approx. 0.30 kg |
| Operating Temperature | -20°C to +60°C |
| Warranty | 12 Months |
Key Features
Applications
Why Choose Crimscent?
Crimscent offers high-quality Fixed Flow Regulators engineered for precise and dependable gas delivery. Designed for compatibility with disposable calibration gas cylinders, our regulators ensure accurate calibration, enhanced safety, and consistent performance in demanding industrial and laboratory environments. Available in a wide range of preset flow rates and gas-specific configurations to meet your application requirements.
